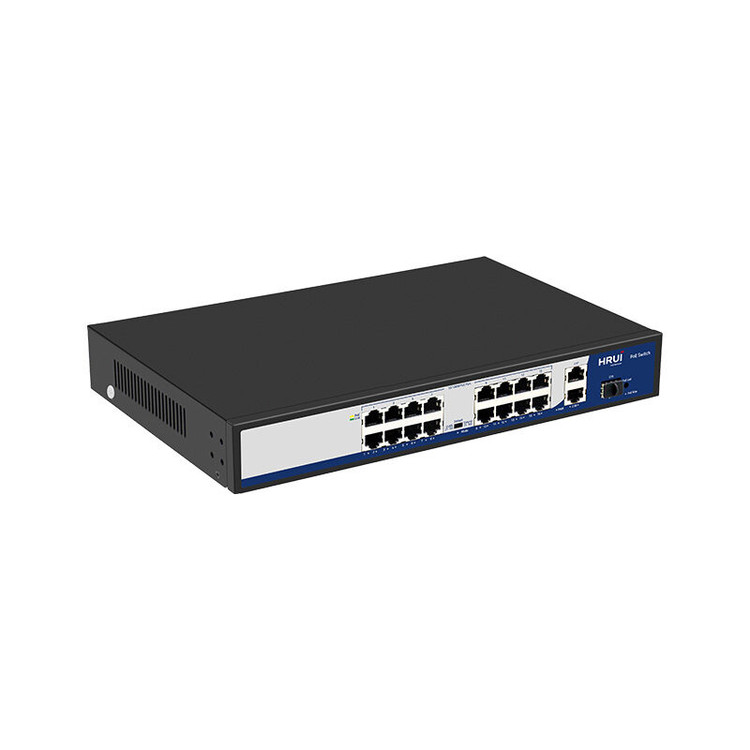

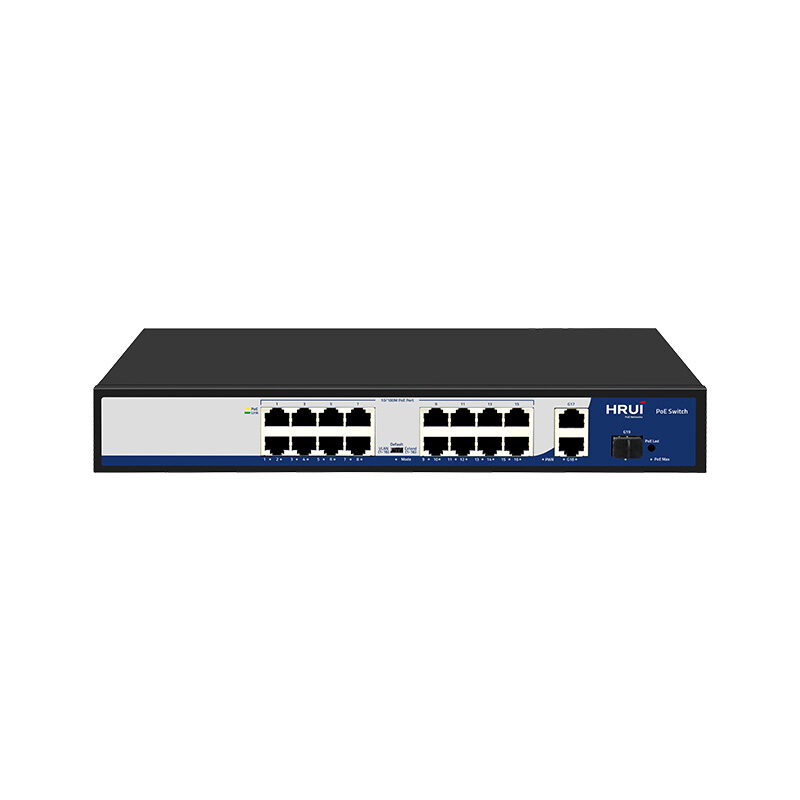

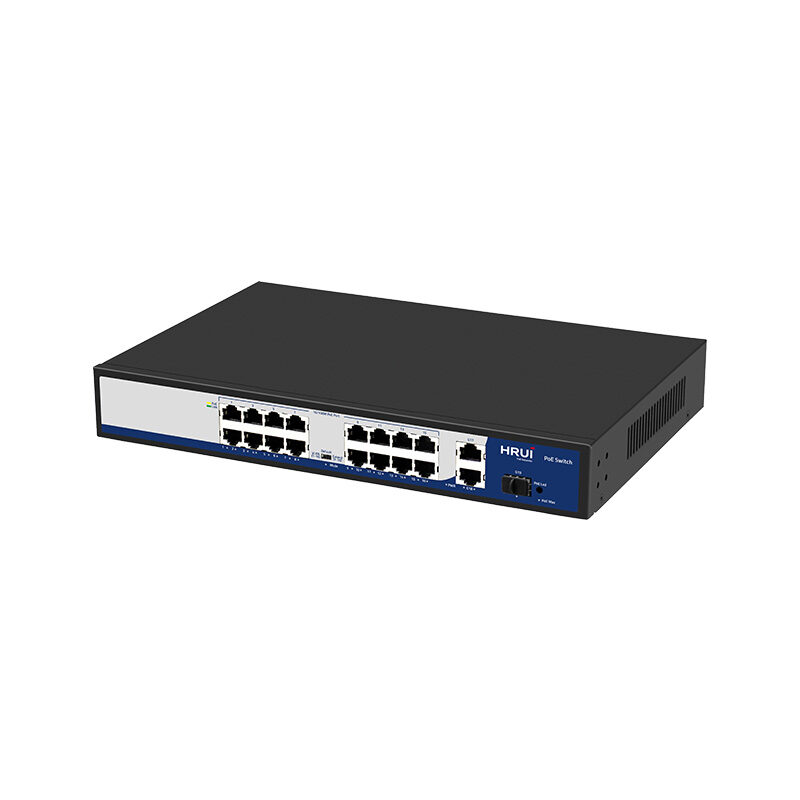

سوئیچ PoE اچ ار یو ای HRUI HR900-AF-1621GS-300
Switch HRUI HR900-AF-1621GS-300
توضیحات
سوئیچ 16 پورت PoE و 2 پورت Uplink گیگ و 1 پورت SFP Uplink گیگ
– سوئیچ PoE
– توان کلی 300 وات
– 30 ماه وارانتی بی قید و شرط
|
Specifications |
|
|
I/O Interface |
|
|
Power |
AC INPUT （100-240 V） |
|
Ethernet |
16* 10/100M PoE Ports 2* Gigabit Ethernet Uplink Ports 1* Gigabit SFP Port |
|
Chip Solution |
RTL8367S+RTL8309N |
|
Performance |
|
|
Bandwidth |
9.2Gbps |
|
Forwarding Rate |
6.84Mpps |
|
Packet Buffer |
3Mbit |
|
MAC Address |
2K |
|
Transfer Mode |
Store and forward |
|
Standard |
|
|
Network protocol |
IEEE802.3（Ethernet） IEEE802.3u（Fast Ethernet） IEEE802.3ab（Gigabit Ethernet） IEEE802.3x（Flow control） IEEE 802.3z （Gigabit Ethernet fiber optic standard） |
|
PoE Protocol |
IEEE802.3af （15.4W） IEEE802.3at （30W） POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6- |
|
Industry Standard |
EMS: EN61000-4-2 (ESD) IEN61000-4-5 （Surge） |
|
Network Medium |
10BASE-T: Cat 3, 4, 5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000Base-TX : Cat5 or more UTP/STP(≤100 meter) |
|
Optical Media |
Multimode fiber : 50/125, 62.5/125, 100/140um Single mode fiber : 8/125, 8.7/125, 9/125, 10/125um |
|
Protection |
|
|
Certificate |
CE/FCC/ROHS |
|
Environment standards |
|
|
Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%，non-condensing |
|
Physical Features |
|
|
Dimension |
Product Dimension: 320*207*45mm Package Dimension: 370*290*85mm N.W: 1.61KG G.W: 2.14KG |
|
Packing Info |
Carton MEAS: 445*310*390mm Packing Qty: 5 set Packing Weight: 11.7KG |
|
Power Voltage |
Input Voltage : AC 100-240 V 50-60Hz Power supply：52V /5.76A |
|
Power |
Non POE board power: maximum 6W POE power：maximum 270W |
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
|
Functional indication |
|
|
Indicators |
PWR（Power indication） Mode（Dial indicator） 1-19Green（Link&Data） POE Max（Power display） |
|
PWR |
On：Equipment powered on Off：Equipment power off |
|
Mode |
On：VLAN Flashing：Extend Off：Default |
|
1-19Green |
On：Link connectivity Flashing：Data transmission Off：Link abnormality |
|
1-16Yellow（POE） |
On：Powered on Off：Powered off |
|
POE Max（Green） |
Off：Indicates that PoE power usage is less than 90% Flashing: Indicates PoE power usage of 90% ≤ P ≤ 95% On：Indicates PoE power usage of 95%<P<100% |
|
POE LED button |
Dual color light selection: default green (link data), switch yellow light (POE) |
